WandererBox PLUS V3
Multifunctional USB3.0+DC controller
SKU: WBX3-Plus
Guide price：299 USD
Guide price：299 USD
Normally open DC output * 1 5-13.2V regulator output * 1 Dew heater(or switch) output * 1 DC switch output * 3
DC5525 input supports up to 12V 10A
**Normally open DC output: DC5525, internally directly connected to the input port, maximum 10A.

**5-13.2V regulator output: DC5521, adjustable voltage, switchable, maximum current 5A

**Dew heater output: DC5521, can control the power of dew heater, can also be used as a switch, maximum current 8A

**3 parallel DC switch output: DC551, switchable, maximum total current 8A
2*USB3.1+3*USB2.0

Built-in 12V-5V step-down module Maximum 5A continuous current USB ports can be switched on/off together

**Two USB3.1 outputs can be used to connect cameras for high-speed readout.
**Three USB2.0 outputs can be used to connect other devices such as equatorial mounts, WandererCovers, etc.

**All USB output ports share a 5V 5A power supply capacity, which can power a USB dew heater.
The 5-13.2V adjustable regulator (can be turned off) easily copes with input voltage changes and ensures stable power supply to the camera

Adjustable voltage meets the requirements of different devices
**Long input power cables may cause voltage drops, and the power supply voltage of remote observatories may also be unstable. This DC port will maintain a stable set voltage, which is essential for stable operation of the camera. Some cameras may have image readout problem when the voltage is lower than 12V or unstable. **The operating voltage of some devices (such as most SLR cameras) is not 12V, and the adjustment range of 5 to 13.2V is suitable for most devices.

**This DC port can also be switched on and off.

1*DHT22 temperature & humidity sensor 1*temperature probe
（Standard accessories, no additional purchases required）
Automatic and intelligent Dew Heater Control

1. Manual control: Manually adjust the duty cycle of the PWM port to control the power of the dew heater(0-255).


2. Constant temperature control: WandererBox will keep the dew heater temperature constant at the set value.


3. Dew point temperature difference mode: WandererBox will regulate the temperature of the dew heater to maintain a fixed value higher than the dew point. It saves power and prevents condensation effectively. It also ensures that the dew heater does not overheat, ensuring good image quality.

Electrophoresis protection
Short circuit protection
Overcurrent protection
Electrostatic protection
Maximize the security of WandererBox itself and connected devices
**The environment of a remote observatory can be harsh, and the normal operation of the equipment is very important. We have specially designed the WandererBox series to protect the safety and stability of the equipment as much as possible.
Input voltage and current monitor
Sensors monitor
**Excellent visualization interface. Voltage, current, dew point temperature and other information are clear at a glance.

Note: Current readings are for reference only and may be offset due to environmental factors.
Size 8.6×6.5×2.6cm Weighs only 150g One M6 and four M4 threaded holes on the bottom

You can use our Mini Dovetail Plate to secure the Wanderer Dew Terminator to your dovetail slot. Or take a look at the Accessories section below!

You can also use screws to fix it to a dovetail board or any structure with holes.

With power indicator lights
The working status is clear at a glance

The power light is dim and won't affect your dark environment. Of course, you can also cover the power light.
Low temperature resistant design, able to work normally in environment as low as -25℃ (-13℉).
Related Accessories

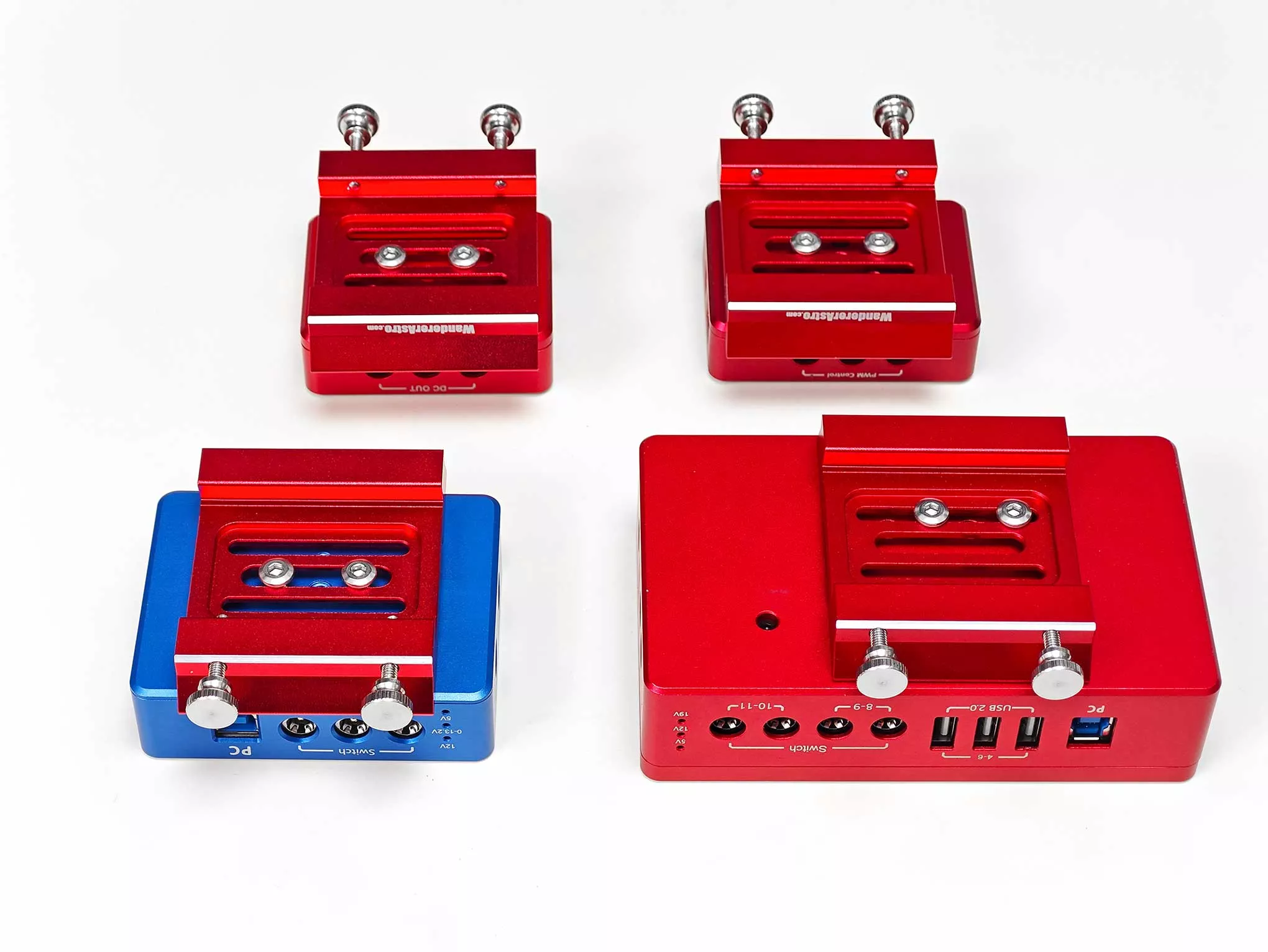

Easily mount your WandererBox to the Vixen dovetail plate, and it can also be used as a mini Losmandy dovetail plate.

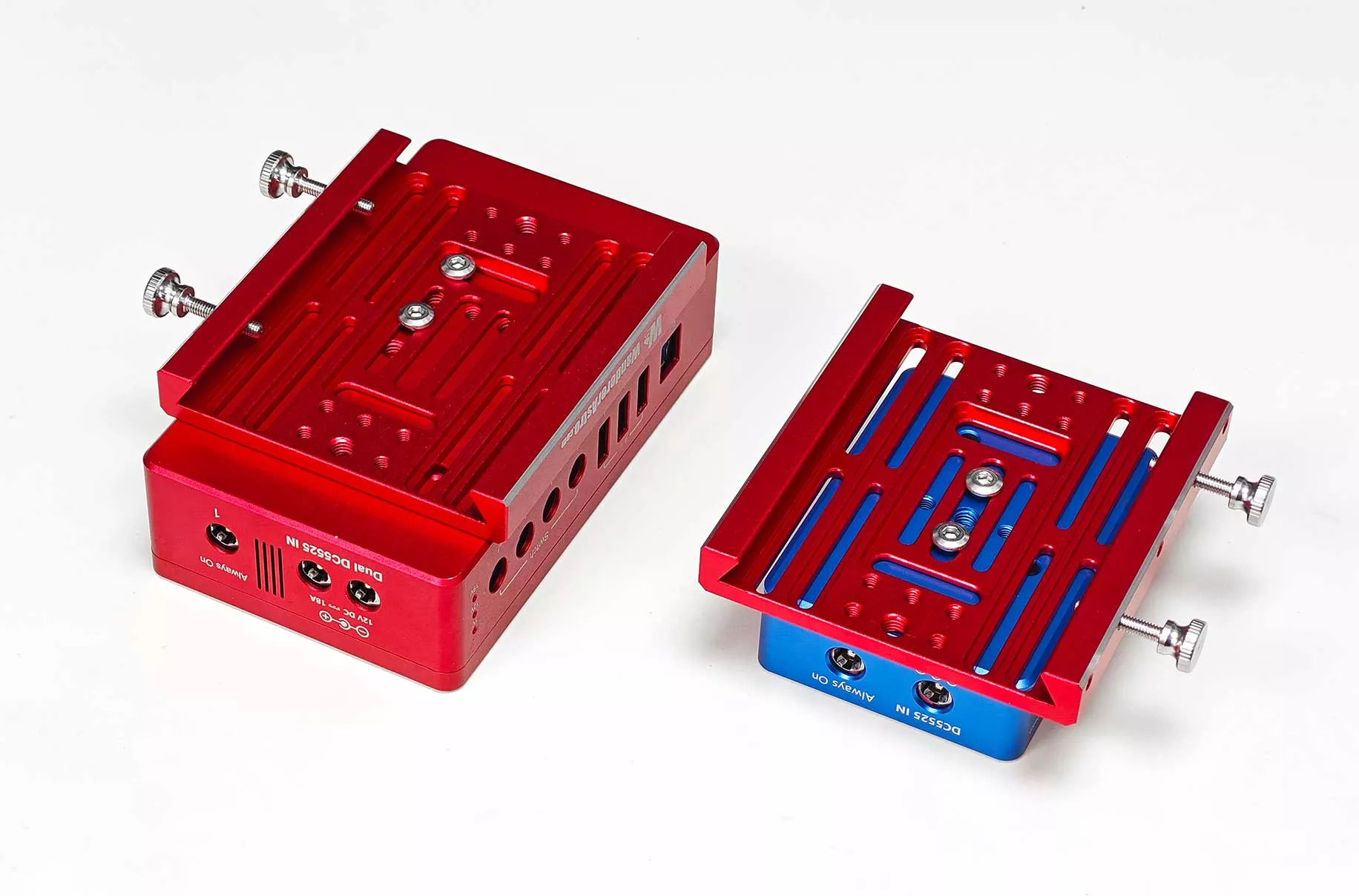

Easily mount your WandererCover V4 Pro-EC/Wanderer Eclipse/WandererBox to the Losmandy dovetail plate.
Specifications
Dimensions
Packaging list
